-11%
GIGABYTE
SKU: AIT-11123

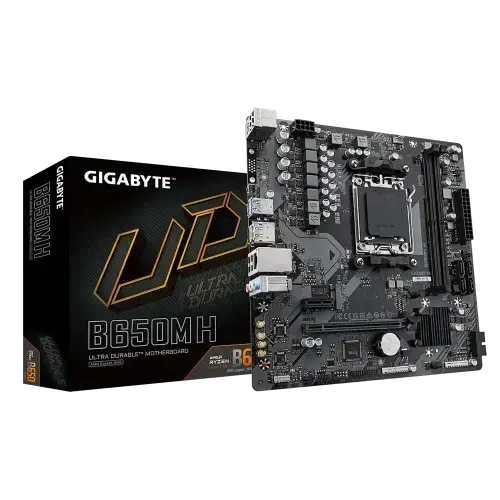

GIGABYTE B650M H AM5 Micro-ATX Motherboard
৳15,100
11% OFF
You save ৳1,600!
Out of Stock
Pre-order — stock on the way
- • Model: B650M H
- • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
- • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
- • Graphics Output: 2 x DisplayPort, 1 x HDMI port
- • Features: 1 x DisplayPort, 1 x HDMI
🚚
Fast Delivery
🔒
Secure Pay
🔄
Easy Return
✅
Authentic
📦 Delivery Estimate
Dhaka: 1–2 days
Outside: 3–5 days
Order before 3PM for same-day dispatch
| Basic Information | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | CPU: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
