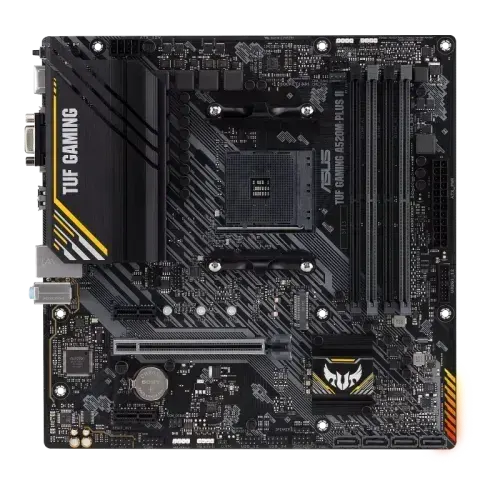

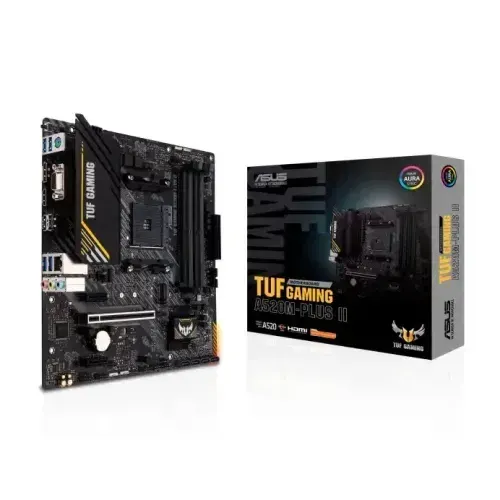

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
You save ৳1,000!
- • Model: TUF GAMING A520M-PLUS II
- • Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
- • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
- • Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
- • Features: Onboard RGB headers
📦 Delivery Estimate
Order before 3PM for same-day dispatch
| Basic Information | |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | A520 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | microATX 24.4cm x 24.4cm |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | |
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
| Memory | |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related Storage related USB Miscellaneous |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | |
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – ASUS Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ – EZ update – PC Cleaner – System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
