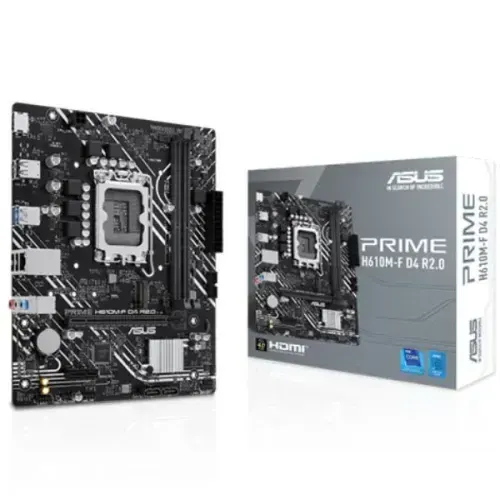

ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard
৳11,000
8% OFF
You save ৳900!
Out of Stock
Pre-order — stock on the way
- • Model: PRIME H610M-F D4 R2.0
- • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- • Supported Memory: 2 x DIMM, Max. 64GB, DDR4
- • Graphics Output: 1x HDMI
- • Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet
🚚
Fast Delivery
🔒
Secure Pay
🔄
Easy Return
✅
Authentic
📦 Delivery Estimate
Dhaka: 1–2 days
Outside: 3–5 days
Order before 3PM for same-day dispatch
| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| M.2 Socket | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module |
| Maximum Memory | Max. 64GB |
| Graphics | |
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header |
| Others | |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot Core – Stainless-steel back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Aluminum heatsink design |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 – EPU – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
