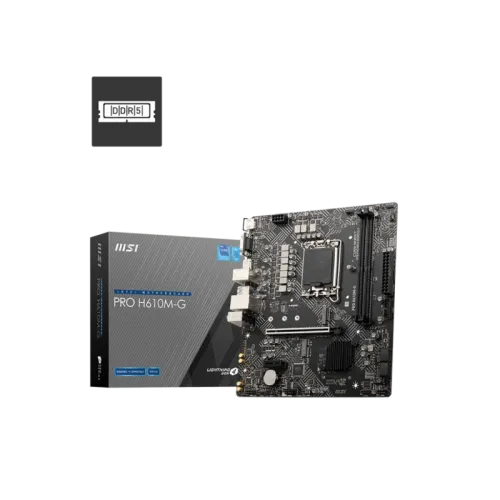

MSI PRO H610M-G DDR5 mATX Motherboard
MSI PRO H610M-G DDR5 mATX Motherboard Original price was: ৳ 11,900.00.Current price is: ৳ 11,000.00.
-15%
Click to enlarge

MSI PRO H610M-S DDR4 m-ATX Motherboard

Original price was: ৳ 10,800.00.Current price is: ৳ 9,200.00.

Key Features

  • Model: PRO H610M-S
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 96GB
  • Graphics Output: 1x HDMI
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Compare
Add to wishlist
20 People watching this product now!

Description

Basic Information
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1 x m.2
Memory
Type DDR4
Slots 1
Supported Memory 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 64GB
Graphics
Graphics 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Connector & Ports
HDMI 1x HDMI 1.4 with HDR port
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years
