| Specification | Value |
|---|---|
| Model | HUANANZHI H610M-VH Motherboard |
| Chipset | Intel H610 |
| CPU Socket | Support Intel LGA1700 Processors |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB |
| Storage Interface | 3xSATA3.0 6Gbps |
| Expansion Slots | 1xPCIe3.0x16，1xPCIe3.0x1 |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 3.0 32Gbps@M.2 2280 NGFF SATA3.0 6Gbps，1xM.2 WIFI |
| Sound Track | Realtek High Definition Audio ALC897 |
| Network Card | Realtek Gigabit Network Card RTL8111H |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| Power Supply | 8Phase Power Supply |
| PCB Layers | 4-layer PCB |
| Dimension | 220*180MM M-ATX |
| Rear Panel Interface | 4xUSB2.0 480Mbps，2xUSB3.2 10Gbps，1xNetwork Card Interface，1×3-Hole Audio Interface，1xVGA Interface，1xHDMI2.0 Interface |
| Front Panel Interface | 1xUSB2.0 480Mbps PIN，1xUSB3.2 5Gbps PIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN |
| Support System | Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |

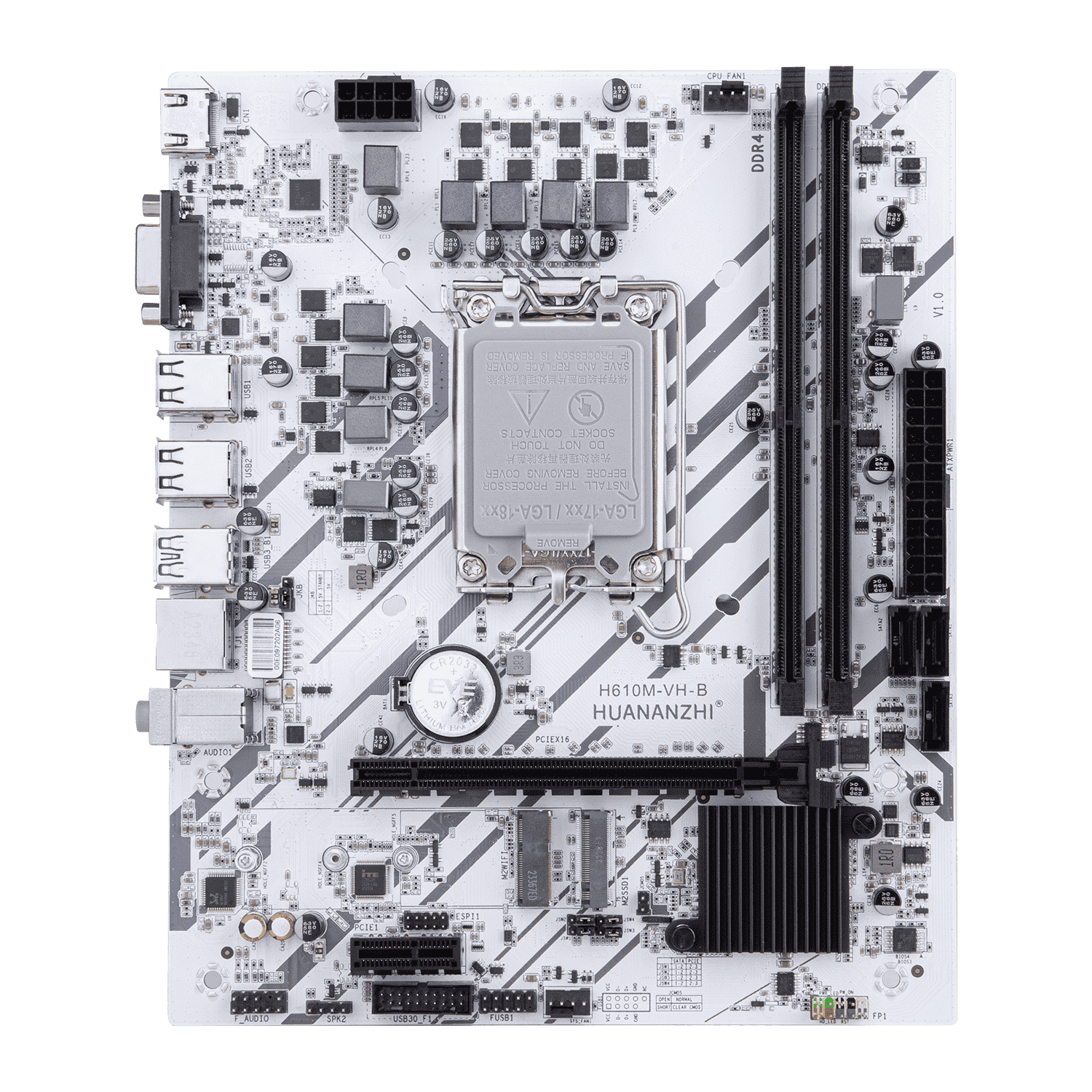

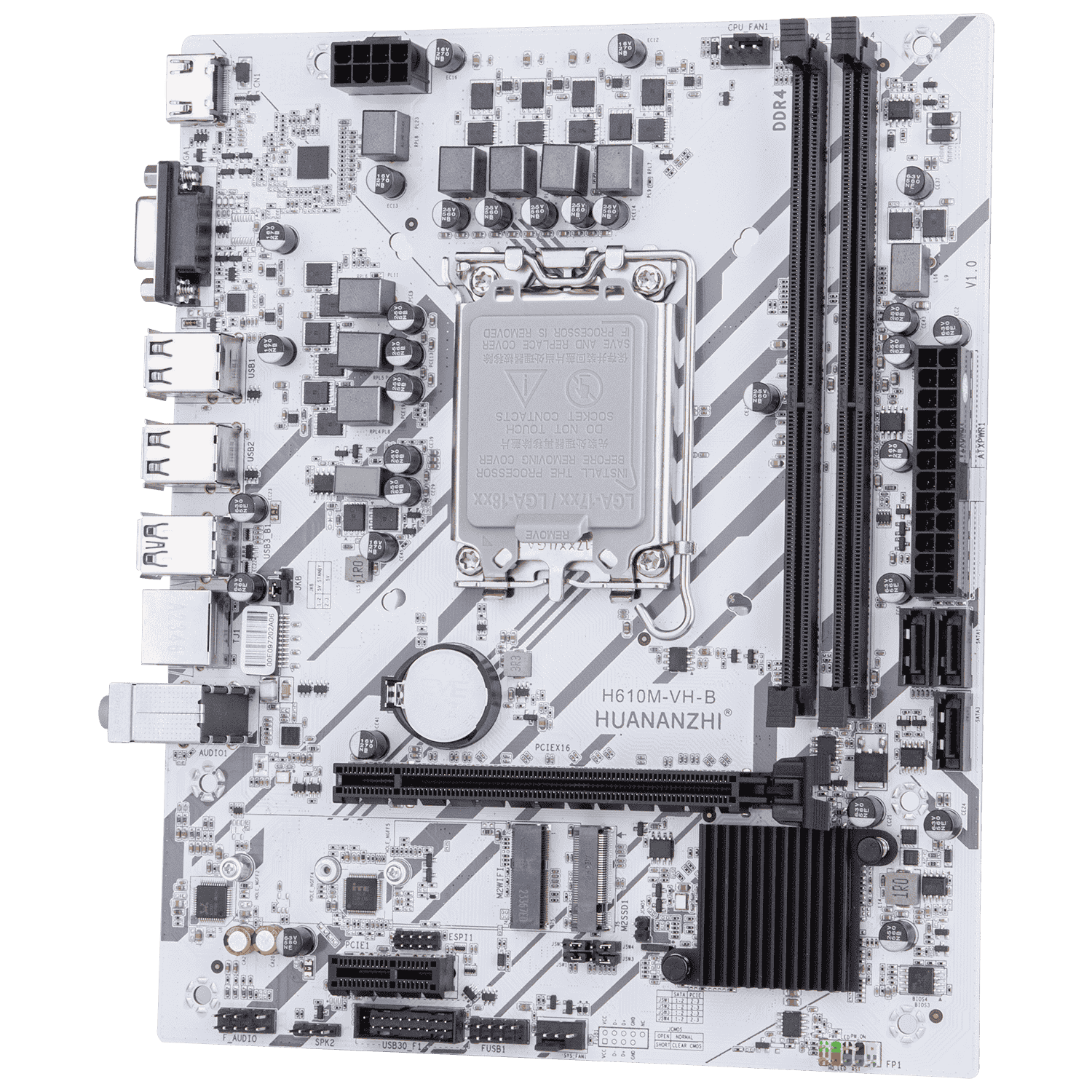

HUANANZHI H610M-VH-B INTEL 12TH/13TH GEN M-ATX MOTHERBOARD
Original price was: ৳ 12,500.00.৳ 10,000.00Current price is: ৳ 10,000.00.
HUANANZHI A520M-VH Motherboard
Original price was: ৳ 9,500.00.৳ 7,600.00Current price is: ৳ 7,600.00.
-19%
HUANANZHI H610M-VH-w INTEL 12TH/13TH GEN M-ATX MOTHERBOARD
Original price was: ৳ 13,000.00.৳ 10,500.00Current price is: ৳ 10,500.00.
Key Features:
- HUANANZHI H610M-VH-w Motherboard
- · Support Intel LGA1700 Processors
- · 2 x DDR4 Memory Slot ,Max Support 64GB
- · 3xSATA3.0 6Gbps,4xUSB2.0 480Mbps，2xUSB3.2 10Gbps
- · 1xPCIe3.0x16，1xPCIe3.0x1
- · 1xM.2 2280 NVME PCIE X4 3.0 32Gbps@M.2 2280 NGFF SATA3.0 6Gbps，1xM.2 WIFI
