| Specification | Value |
|---|---|
| Model | HUANANZHI H311-VHD4 Motherboard |
| Chipset | Intel 100 Series Chipset |
| CPU Socket | Support Intel LGA1151 Platform Processors |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support Dual Channels DDR4 2666/2400/2133/1866MHz(Decided By CPU)，Max Support32GB |
| Storage Interface | 4xSATA 3.0 6Gbps |
| Expansion Slots | 1xPCI Express3.0 x16，1xPCI Express 2.0 x1 |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 2.0 |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Gigabit Network Card |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| Power Supply | 6-Phase Power Supply |
| PCB Layers | 4-Layer PCB |
| Dimension | 215*170MM M-ATX |
| Rear Panel Interface | 2xUSB3.0, 2xUSB2.0, 1xVGA Interface,1xHDMI2.0 Interface,1xDP1.2 Interface,1x Network Card Interface, 1×3-Hole Audio Interface,1xJVGA PIN |
| Front Panel Interface | 2 xUSB2.0 PIN,1 xUSB3.0 PIN,1 x Front Audio PIN,,1 x Debug PIN,1 x JBAT BIOS PIN 1 x COM PIN,1 x Power On/Restart PIN |
| Support System | Windows7 Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
GIGABYTE B650M H AM5 Micro-ATX Motherboard
Original price was: ৳ 15,100.00.৳ 13,500.00Current price is: ৳ 13,500.00.

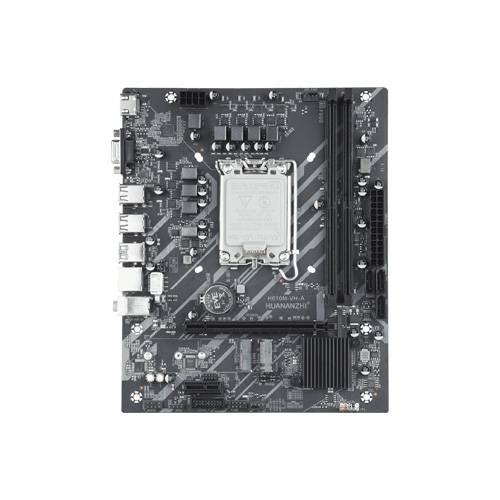

HUANANZHI H610M-VH-B INTEL 12TH/13TH GEN M-ATX MOTHERBOARD
Original price was: ৳ 12,500.00.৳ 10,000.00Current price is: ৳ 10,000.00.
-14%

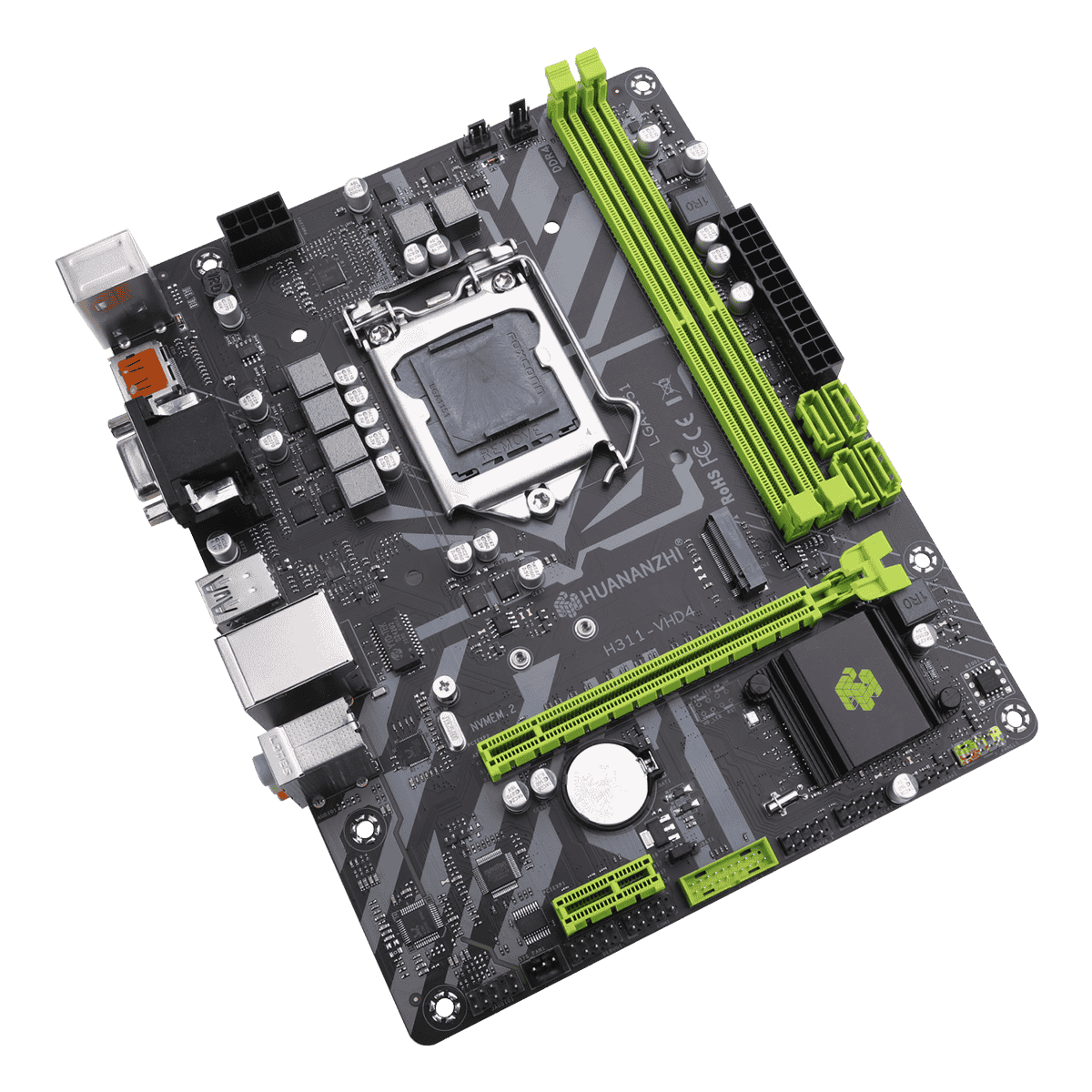

HUANANZHI H311-VHD4 Motherboard
Original price was: ৳ 9,800.00.৳ 8,400.00Current price is: ৳ 8,400.00.
Key Features:
- Intel 100 Series Chipset
- Support Intel LGA1151 Platform Processors
- 2 x DDR4 Memory Slot，Max Support32GB
- 1xPCI Express3.0 x16，1xPCI Express 2.0 x1
- 1xM.2 2280 NVME PCIE X4 2.0
- 2xUSB3.0, 2xUSB2.0, 2 xUSB2.0 PIN,1 xUSB3.0 PIN
