| Specification | Value |
|---|---|
| Model | HUANANZHI A520M-VH Motherboard |
| Chipset | AMD A520 Series Chipset |
| CPU Socket | Support AMD AM4,Ryzen3000/4000/5000、4000G/5000G |
| Memory slot | 2 x DDR4 Memory slot |
| Memory standard | Support Dual channels DDR4 3200/2933/2666/2400MHz，Max support 64GB |
| Storage interface | 4xSATA3.0 6Gbps interfaces |
| Expansion Slots | 1*PCI Express3.0 x16，1*PCI Express3.0 x1 |
| Expansion interface | 1xM.2 2280 NVME PCIE X4 3.0 32Gb/s |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Realtek Gigabit network card |
| Power interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| power supply | 6-phase power supply |
| PCB layers | 4-layer PCB |
| Dimension | 215*174MM M-ATX |
| Rear panel interface | 1xVGD，1xHDMI2.0，2xUSB2.0 480Mbps，2xUSB3.2 5Gb/s，1x Network card interface，1×3-hole audio interface |
| Front panel interface | 1 xUSB2.0 480Mbps PIN，1 xUSB3.2 5Gb/s PIN，1 xFront audio PIN，1 xPower on/restart pin，1 xCMOS，1 xCOMPIN，1 xDebug PIN |
| Support system | Windows7 Windows10 Support incoming call power on/timed power on/wake-on-LAN/network card start |
| BIOS | AMI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |

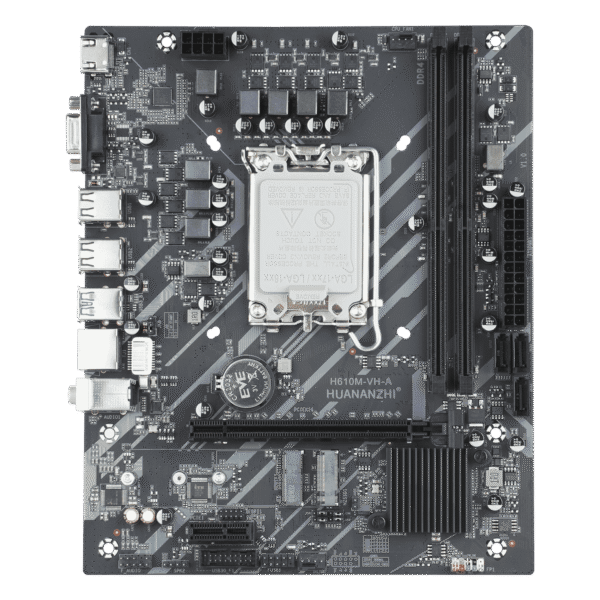

HUANANZHI H610M-VH-w INTEL 12TH/13TH GEN M-ATX MOTHERBOARD
Original price was: ৳ 13,000.00.৳ 10,500.00Current price is: ৳ 10,500.00.
HUANANZHI H510M-K Motherboard
Original price was: ৳ 13,000.00.৳ 8,600.00Current price is: ৳ 8,600.00.
-20%

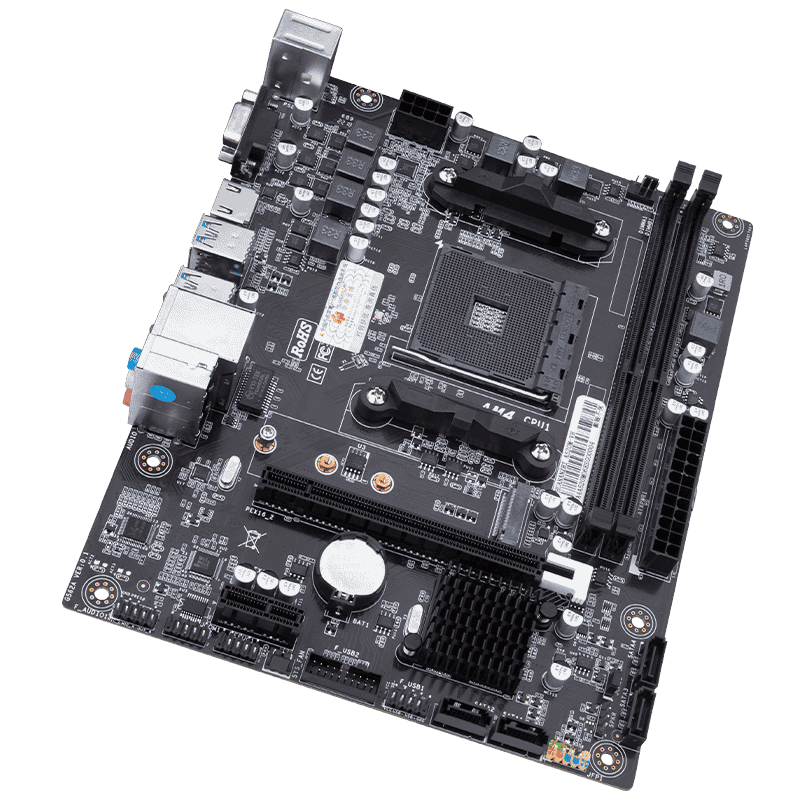

HUANANZHI A520M-VH Motherboard
Original price was: ৳ 9,500.00.৳ 7,600.00Current price is: ৳ 7,600.00.
Key Features:
- · Support AMD AM4,Ryzen3000/4000/5000、4000G/5000G
- · 2 x DDR4 memory slot，Max support 64GB
- · 1*PCI Express3.0 x16，1*PCI Express3.0 x1
- · 1xM.2 2280 NVME PCIE X4 3.0 32Gb/s
- · 1xVGD，1xHDMI2.0，1 xPower on/restart pin
- · 2xUSB2.0 480Mbps，2xUSB3.2 5Gb/s
