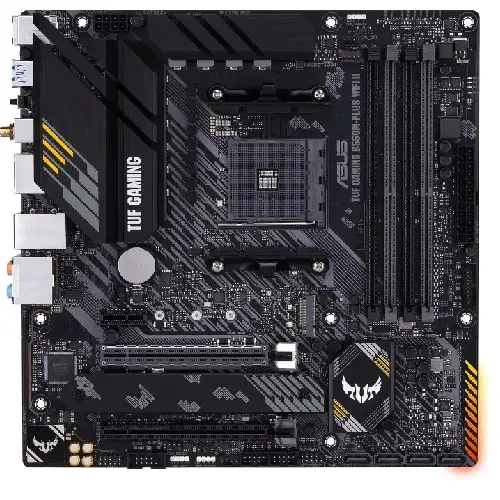

Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard

Original price was: ৳ 20,000.00.Current price is: ৳ 18,800.00.

Key Features

  • Model: TUF GAMING B550M Plus WIFI II
  • Supported CPU: Ryzen 5000/ 5000 G/ 4000 G/ 3000 Series Processors
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
  • Graphics Output: 1 x Display Port, 1 x HDMI
  • Features: Wi-Fi 6, Realtek 2.5Gb Ethernet
Compare
Add to wishlist
14 People watching this product now!

Description

Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset B550
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Expansion Slots
PCI AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)*
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
Support PCIe bifurcation for RAID on CPU function.
PCIEX16_2 will run x2 mode when the PCIEX1 slot is used.
M.2 Socket Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort
1 x HDMI port
Connector & Ports
HDMI 1 x HDMI 2.1(4K@60HZ)
Display Port (s) 1 x DisplayPort 1.2
USB (s) Rear USB:Total 8 ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) TUF LANGuard
Wireless Communication module 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
Supported Storage AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– ProCool
AURA Sync
– AURA RGB headers
– Addressable Gen 2 header
Bundled Software ASUS Exclusive Software
Armory Crate
– Aura Creator
– Aura Sync
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
– EZ update
TUF GAMING CPU-Z
AI Charger
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years
