| Basic Information | ||
| Supported CPU | AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors | |
| Chipset | A520 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features: – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Supports 1 x M.2 | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1 x HDMI port** * Graphics specifications may vary between CPU types |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot Core – Stainless-steel back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert – EZ update – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 03-Year Warranty | |
ASUS EX-B760M-V5 D4 mATX Motherboard
Original price was: ৳ 17,500.00.৳ 16,000.00Current price is: ৳ 16,000.00.
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Original price was: ৳ 12,100.00.৳ 11,100.00Current price is: ৳ 11,100.00.
-19%

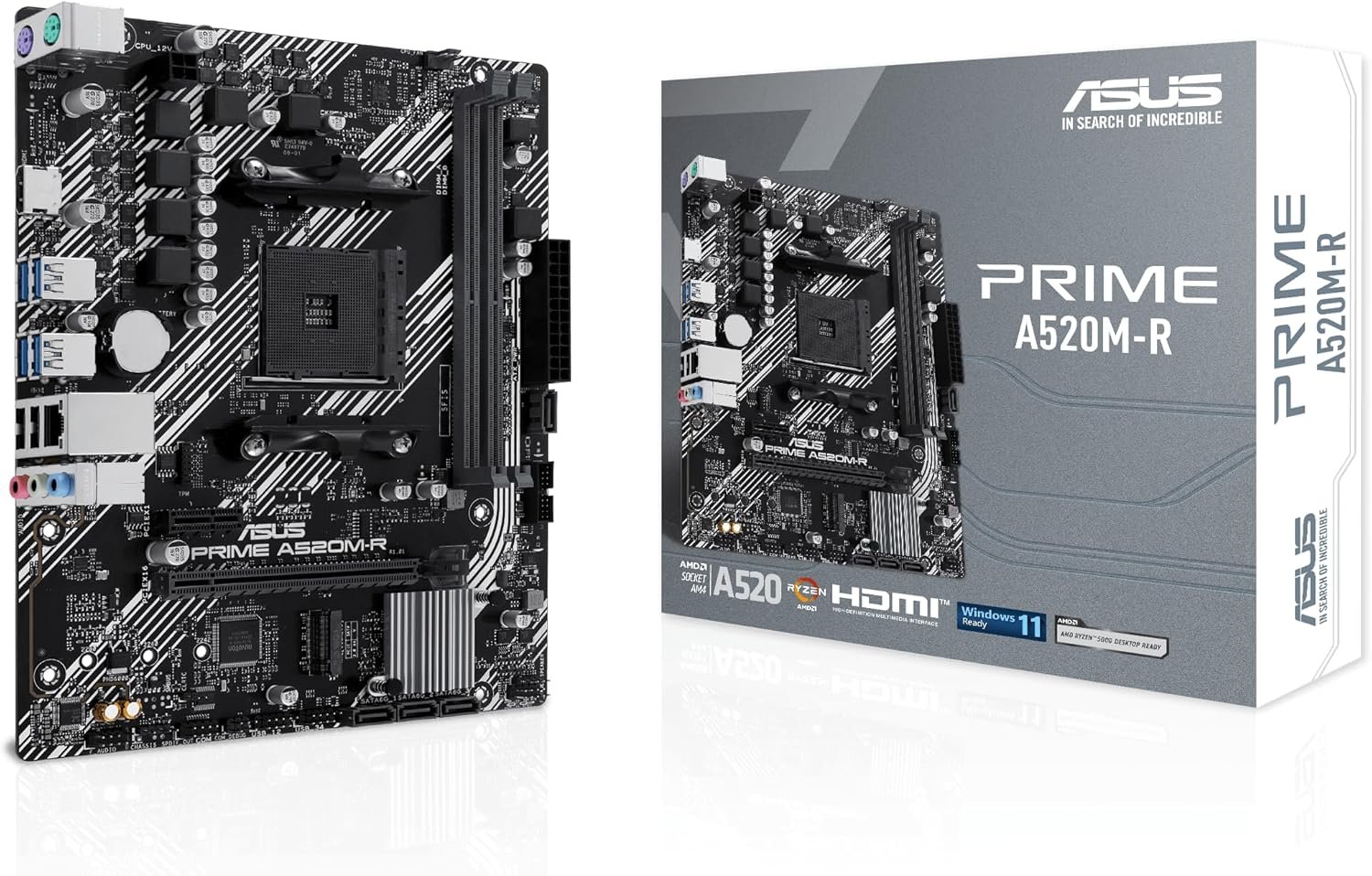

Asus PRIME A520M-R AM4 micro ATX Motherboard
Original price was: ৳ 9,100.00.৳ 7,400.00Current price is: ৳ 7,400.00.
Key Features
- Model: PRIME A520M-R
- CPU: AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series
- Supported RAM: 2 x DIMM ,Max 64GB, Up to 5100(OC)
- Output: 1 x HDMI
- Features: 1 x M.2, 4 x SATA 6Gb/s ports
