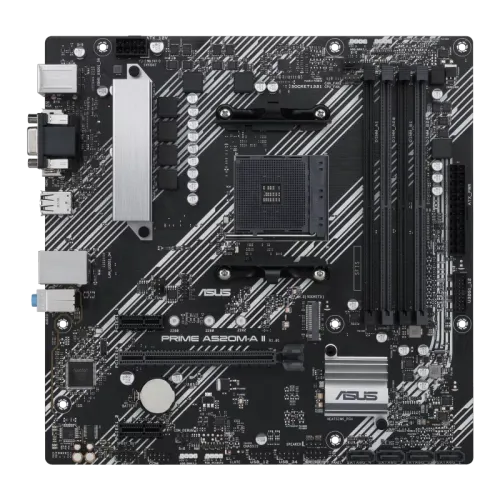

Asus PRIME A520M-A II AM4 micro ATX Motherboard

Original price was: ৳ 12,100.00.Current price is: ৳ 11,100.00.

Key Features

  • Model: PRIME A520M-A II
  • CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series
  • Dual Channel Memory Architecture
  • Output: 1 x DisplayPort, 1 x D-Sub, 1 x HDMITM port
  • Features: 5X Protection III
Compare
Add to wishlist
10 People watching this product now!

Description

Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium Japanese audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Maximum Memory 128GB
Graphics
Graphics Graphics specifications may vary between CPU types
Connector & Ports
HDMI 1 x HDMITM port
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub
USB (s) Rear USB: Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB: Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Supported Storage AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support Raid 0, 1, 10
Audio 3 x Audio jacks Back Panel
1 x Front Panel Audio header (AAFP)
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot

ASUS Thermal Solution
– VRM heatsink design
AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
Warranty Information
Manufacturing Warranty 03-Year Warranty
